How to insert data in MySql Using JSP Servlet & JDBC

Here we will insert data in MySQL using JSP Servlet and JDBC.

Here We will fetch Data from the JSP page and pass it to Servlet then DAO which contains JDBC code to store data in the MySQL database.

How To Get Data From Database To Servlet Jdbc JSP

Technology used

apache-tomcat-10.1.1
JavaSE-17
eclipse IDE for Enterprise Java and Web Developers

Steps for Data insertion using Jsp Servlet

Create MySql Table
Create a Dynamic Web Project
Create package structure
Create Java files
Create JSP Pages

1 Create MySql Table

create table student(
  id bigint(20) unsigned NOT NULL AUTO_INCREMENT,
  roll_no bigint(20),
  name varchar(100),
  course varchar(100),
  session varchar(80),
  semester varchar(80),
  mobile_no varchar(30),
  email_id varchar(100),
  address varchar(200),
  add_date timestamp DEFAULT CURRENT_TIMESTAMP,
  primary key(id),
  unique key(roll_no),
  unique key(mobile_no),
  unique key(email_id)
) ENGINE = InnoDB DEFAULT CHARSET = utf8;

create table student(

id bigint(20) unsigned NOT NULL AUTO_INCREMENT,

roll_no bigint(20),

name varchar(100),

course varchar(100),

session varchar(80),

semester varchar(80),

mobile_no varchar(30),

email_id varchar(100),

address varchar(200),

add_date timestamp DEFAULT CURRENT_TIMESTAMP,

primary key(id),

unique key(roll_no),

unique key(mobile_no),

unique key(email_id)

) ENGINE = InnoDB DEFAULT CHARSET = utf8;

Creating Java Dynamic Web Project

Open Eclipse IDE and follow the below steps

Click on File->New-> Dynamic Web Project.
Give project Name
Select Target runtime (here apache-tomcat-10.1.1)
then next again next then finish.

create package structure for storing servlet, model, and DAO.

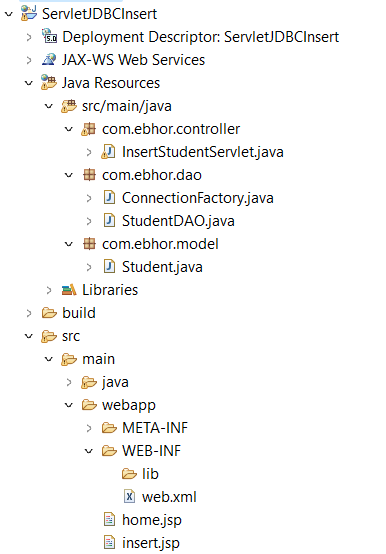

Project Explorer

External Jar

The following External jars are included in the apache tomcat lib folder

mysql-connector-java-8.0.30

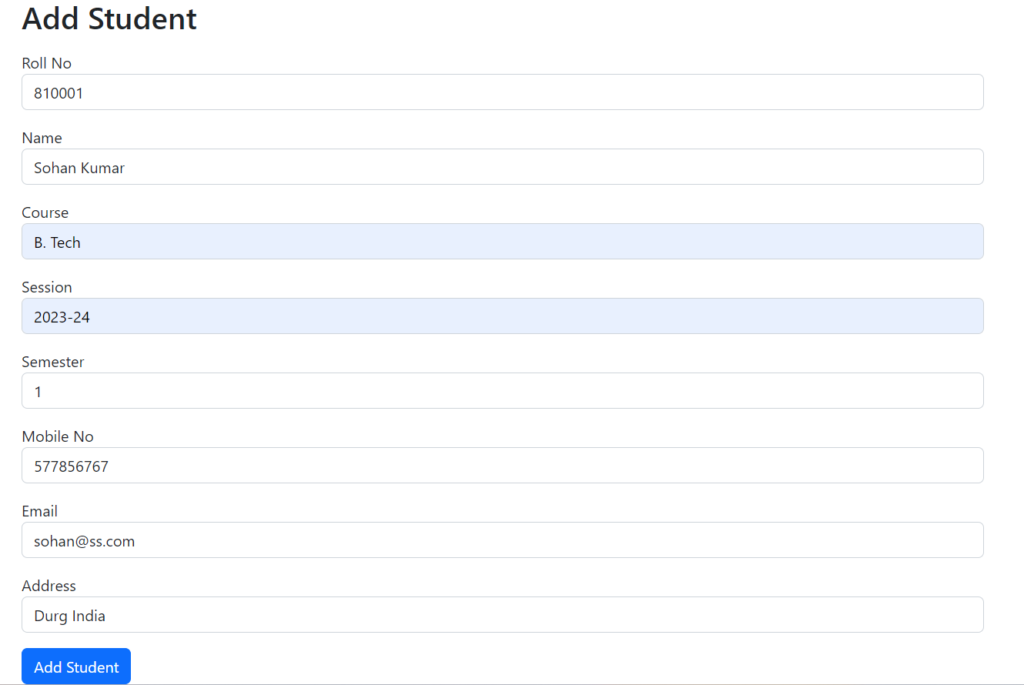

JSP Page to insert student record -insert.jsp

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
	pageEncoding="utf-8"%>
<%@taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<!DOCTYPE html>
<html>
<head>
<title>Insert Student</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<link
	href="https://cdn.jsdelivr.net/npm/bootstrap@5.2.3/dist/css/bootstrap.min.css"
	rel="stylesheet">
<script
	src="https://cdn.jsdelivr.net/npm/bootstrap@5.2.3/dist/js/bootstrap.bundle.min.js"></script>
</head>
<body class="container-fluid">
	<div class="row">
		<div class="col-2"></div>
		<div class="col-8">
			<div>${failure}</div>
			<h2>Add Student</h2>
			<form id="insert-student" action="insert-student" method="post">
				<div class="mb-3 mt-3">
					<label for="rollNo">Roll No</label> <input type="text"
						class="form-control" id="rollNo" placeholder="Roll No"
						name="rollNo" required>
				</div>
				<div class="mb-3 mt-3">
					<label for="name">Name</label> <input type="text"
						class="form-control" id="name" placeholder="Name" name="name"
						required>
				</div>
				<div class="mb-3">
					<label for="course">Course</label> <input type="text"
						class="form-control" id="course" placeholder="Enter Course"
						name="course" required />
				</div>
				<div class="mb-3 mt-3">
					<label for="session">Session</label> <input type="text"
						class="form-control" id="designation" placeholder="Enter Session"
						name="session" required />
				</div>
				<div class="mb-3">
					<label for="semester">Semester</label> <input type="number"
						class="form-control" id="semester" placeholder="Enter Semester"
						name="semester" required />
				</div>
				<div class="mb-3">
					<label for="mobileNo">Mobile No</label> <input type="number"
						class="form-control" id="mobileNo"
						placeholder="Enter Mobile Number" name="mobileNo" required />
				</div>
				<div class="mb-3">
					<label for="email">Email</label> <input type="email"
						class="form-control" id="email" placeholder="Enter Email"
						name="email" required />
				</div>
				<div class="mb-3">
					<label for="address">Address</label> <input type="text"
						class="form-control" id="semester" placeholder="Enter address"
						name="address" required />
				</div>
				<button type="submit" class="btn btn-primary">Add Student</button>
			</form>
		</div>
		<div class="col-2"></div>
	</div>
</body>
</html>

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"

pageEncoding="utf-8"%>

<%@taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>

<!DOCTYPE html>

<html>

<head>

<title>Insert Student</title>

<link

href="https://cdn.jsdelivr.net/npm/[email protected]/dist/css/bootstrap.min.css"

rel="stylesheet">

<script

src="https://cdn.jsdelivr.net/npm/[email protected]/dist/js/bootstrap.bundle.min.js"></script>

</head>

<div>${failure}</div>

<h2>Add Student</h2>

<label for="rollNo">Roll No</label> <input type="text"

class="form-control" id="rollNo" placeholder="Roll No"

name="rollNo" required>

</div>

<label for="name">Name</label> <input type="text"

class="form-control" id="name" placeholder="Name" name="name"

required>

</div>

<label for="course">Course</label> <input type="text"

class="form-control" id="course" placeholder="Enter Course"

name="course" required />

</div>

<label for="session">Session</label> <input type="text"

class="form-control" id="designation" placeholder="Enter Session"

name="session" required />

</div>

<label for="semester">Semester</label> <input type="number"

class="form-control" id="semester" placeholder="Enter Semester"

name="semester" required />

</div>

<label for="mobileNo">Mobile No</label> <input type="number"

class="form-control" id="mobileNo"

placeholder="Enter Mobile Number" name="mobileNo" required />

</div>

<label for="email">Email</label> <input type="email"

class="form-control" id="email" placeholder="Enter Email"

name="email" required />

</div>

<label for="address">Address</label> <input type="text"

class="form-control" id="semester" placeholder="Enter address"

name="address" required />

</div>

<button type="submit" class="btn btn-primary">Add Student</button>

</form>

</div>

</div>

</body>

</html>

Servlet class to get Student Data from JSP- InsertStudentServlet.java

This servlet accepts data from JSP using a request object and getParameter() and store all data in student object.

Student object is passed to StudentDAO insert() to save data in MySQL database.

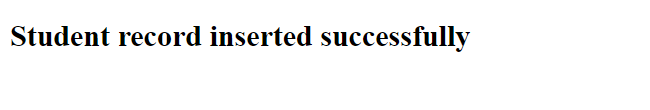

If data is inserted then the request response is forwarded to home.jsp.

In case of error, it is again sent back to insert.jsp.

package com.ebhor.controller;

import java.io.IOException;
import java.util.List;

import com.ebhor.dao.StudentDAO;
import com.ebhor.model.Student;

import jakarta.servlet.RequestDispatcher;
import jakarta.servlet.ServletException;
import jakarta.servlet.annotation.WebServlet;
import jakarta.servlet.http.HttpServlet;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;

@WebServlet("/insert-student")
public class InsertStudentServlet extends HttpServlet {
	private static final long serialVersionUID = 1L;
	StudentDAO dao = new StudentDAO();

	protected void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		Student student = new Student();
		student.setRollNo(Long.parseLong(request.getParameter("rollNo")));
		student.setName(request.getParameter("name"));
		student.setCourse(request.getParameter("course"));
		student.setSession(request.getParameter("session"));
		student.setSemester(request.getParameter("semester"));
		student.setMobileNo(request.getParameter("mobileNo"));
		student.setMailId(request.getParameter("email"));
		student.setAddress(request.getParameter("address"));
		int i = dao.insert(student);
		if (i == 1) {
			request.setAttribute("success", "Student record inserted successfully");
			RequestDispatcher rd = request.getRequestDispatcher("/home.jsp");
			rd.forward(request, response);
		} else {
			request.setAttribute("failure", "Student record can not be inserted");
			RequestDispatcher rd = request.getRequestDispatcher("/insert.jsp");
			rd.forward(request, response);
		}

	}
}

package com.ebhor.controller;

import java.io.IOException;

import java.util.List;

import com.ebhor.dao.StudentDAO;

import com.ebhor.model.Student;

import jakarta.servlet.RequestDispatcher;

import jakarta.servlet.ServletException;

import jakarta.servlet.annotation.WebServlet;

import jakarta.servlet.http.HttpServlet;

import jakarta.servlet.http.HttpServletRequest;

import jakarta.servlet.http.HttpServletResponse;

@WebServlet("/insert-student")

public class InsertStudentServlet extends HttpServlet {

private static final long serialVersionUID = 1L;

StudentDAO dao = new StudentDAO();

protected void doPost(HttpServletRequest request, HttpServletResponse response)

throws ServletException, IOException {

Student student = new Student();

student.setRollNo(Long.parseLong(request.getParameter("rollNo")));

student.setName(request.getParameter("name"));

student.setCourse(request.getParameter("course"));

student.setSession(request.getParameter("session"));

student.setSemester(request.getParameter("semester"));

student.setMobileNo(request.getParameter("mobileNo"));

student.setMailId(request.getParameter("email"));

student.setAddress(request.getParameter("address"));

int i = dao.insert(student);

if (i == 1) {

request.setAttribute("success", "Student record inserted successfully");

RequestDispatcher rd = request.getRequestDispatcher("/home.jsp");

rd.forward(request, response);

} else {

request.setAttribute("failure", "Student record can not be inserted");

RequestDispatcher rd = request.getRequestDispatcher("/insert.jsp");

rd.forward(request, response);

}

DAO class for JDBC connection and record insertion

ConnectionFactory.java

This class returns the connection object.

package com.ebhor.dao;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.SQLException;

public class ConnectionFactory {

 public static Connection getConnection() {
 Connection c = null;
 try {
 Class.forName("com.mysql.cj.jdbc.Driver");
 c = DriverManager.getConnection("jdbc:mysql://localhost:3306/ebhor","root", "");
 } catch (ClassNotFoundException e) {
 System.out.println("ClassNotFoundException " + e);
 } catch (SQLException e) {
 System.out.println("SQLException " + e);
 }
 return c;
 }
}

package com.ebhor.dao;

import java.sql.Connection;

import java.sql.DriverManager;

import java.sql.SQLException;

public class ConnectionFactory {

public static Connection getConnection() {

Connection c = null;

try {

Class.forName("com.mysql.cj.jdbc.Driver");

c = DriverManager.getConnection("jdbc:mysql://localhost:3306/ebhor","root", "");

} catch (ClassNotFoundException e) {

System.out.println("ClassNotFoundException " + e);

} catch (SQLException e) {

System.out.println("SQLException " + e);

}

return c;

}

StudentDAO.java

This class contains the logic of data insertion to the database. JDBC Prepared statement is used to save data in Database.

package com.ebhor.dao;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;

import com.ebhor.model.Student;

public class StudentDAO {
	Connection con = null;
	PreparedStatement ps = null;
	ResultSet rs = null;
	int st = 0;

	public int insert(Student student) {
		con = ConnectionFactory.getConnection();
		try {
			String query = "insert into student(roll_no,name,course,session,semester,mobile_no,email_id,address) "
					+ "values(?,?,?,?,?,?,?,?)";
			ps = con.prepareStatement(query);
			ps.setLong(1, student.getRollNo());
			ps.setString(2, student.getName());
			ps.setString(3, student.getCourse());
			ps.setString(4, student.getSession());
			ps.setString(5, student.getSession());
			ps.setString(6, student.getMobileNo());
			ps.setString(7, student.getMailId());
			ps.setString(8, student.getAddress());
			st = ps.executeUpdate();
			System.out.println("value of i=" + st);
		} catch (Exception e) {
			st = -2;
			e.printStackTrace();
		} finally {
			try {
				con.close();
			} catch (SQLException ex) {
				ex.printStackTrace();
			}
		}
		return st;
	}
}

package com.ebhor.dao;

import java.sql.Connection;

import java.sql.PreparedStatement;

import java.sql.ResultSet;

import java.sql.SQLException;

import com.ebhor.model.Student;

public class StudentDAO {

Connection con = null;

PreparedStatement ps = null;

ResultSet rs = null;

int st = 0;

public int insert(Student student) {

con = ConnectionFactory.getConnection();

try {

String query = "insert into student(roll_no,name,course,session,semester,mobile_no,email_id,address) "

+ "values(?,?,?,?,?,?,?,?)";

ps = con.prepareStatement(query);

ps.setLong(1, student.getRollNo());

ps.setString(2, student.getName());

ps.setString(3, student.getCourse());

ps.setString(4, student.getSession());

ps.setString(5, student.getSession());

ps.setString(6, student.getMobileNo());

ps.setString(7, student.getMailId());

ps.setString(8, student.getAddress());

st = ps.executeUpdate();

System.out.println("value of i=" + st);

} catch (Exception e) {

st = -2;

e.printStackTrace();

} finally {

try {

con.close();

} catch (SQLException ex) {

ex.printStackTrace();

}

return st;

}

Student Model class Student.java

package com.ebhor.model;
import java.io.Serializable;
public class Student implements Serializable {
	private static final long serialVersionUID = 7935940591376293207L;
	private long id;
	private long rollNo;
	private String name;
	private String course;
	private String session;
	private String semester;
	private String mailId;
	private String mobileNo;
	private String address;
	public Student() {
	}
	public Student(long id, long rollNo, String name, String course, String session, String semester, String mailId,
			String mobileNo, String address) {
		super();
		this.id = id;
		this.rollNo = rollNo;
		this.name = name;
		this.course = course;
		this.session = session;
		this.semester = semester;
		this.mailId = mailId;
		this.mobileNo = mobileNo;
		this.address = address;
	}
	@Override
	public String toString() {
		return "Student [id=" + id + ", rollNo=" + rollNo + ", name=" + name + ", course=" + course + ", session="
				+ session + ", semester=" + semester + ", mailId=" + mailId + ", mobileNo=" + mobileNo + ", address="
				+ address + "]";
	}
	public long getId() {
		return id;
	}
	public void setId(long id) {
		this.id = id;
	}
	public long getRollNo() {
		return rollNo;
	}
	public void setRollNo(long rollNo) {
		this.rollNo = rollNo;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getCourse() {
		return course;
	}
	public void setCourse(String course) {
		this.course = course;
	}
	public String getSession() {
		return session;
	}
	public void setSession(String session) {
		this.session = session;
	}
	public String getSemester() {
		return semester;
	}
	public void setSemester(String semester) {
		this.semester = semester;
	}
	public String getMailId() {
		return mailId;
	}
	public void setMailId(String mailId) {
		this.mailId = mailId;
	}
	public String getMobileNo() {
		return mobileNo;
	}
	public void setMobileNo(String mobileNo) {
		this.mobileNo = mobileNo;
	}
	public String getAddress() {
		return address;
	}
	public void setAddress(String address) {
		this.address = address;
	}
}

package com.ebhor.model;

import java.io.Serializable;

public class Student implements Serializable {

private static final long serialVersionUID = 7935940591376293207L;

private long id;

private long rollNo;

private String name;

private String course;

private String session;

private String semester;

private String mailId;

private String mobileNo;

private String address;

public Student() {

}

public Student(long id, long rollNo, String name, String course, String session, String semester, String mailId,

String mobileNo, String address) {

super();

this.id = id;

this.rollNo = rollNo;

this.name = name;

this.course = course;

this.session = session;

this.semester = semester;

this.mailId = mailId;

this.mobileNo = mobileNo;

this.address = address;

}

@Override

public String toString() {

return "Student [id=" + id + ", rollNo=" + rollNo + ", name=" + name + ", course=" + course + ", session="

+ session + ", semester=" + semester + ", mailId=" + mailId + ", mobileNo=" + mobileNo + ", address="

+ address + "]";

}

public long getId() {

return id;

}

public void setId(long id) {

this.id = id;

}

public long getRollNo() {

return rollNo;

}

public void setRollNo(long rollNo) {

this.rollNo = rollNo;

}

public String getName() {

return name;

}

public void setName(String name) {

this.name = name;

}

public String getCourse() {

return course;

}

public void setCourse(String course) {

this.course = course;

}

public String getSession() {

return session;

}

public void setSession(String session) {

this.session = session;

}

public String getSemester() {

return semester;

}

public void setSemester(String semester) {

this.semester = semester;

}

public String getMailId() {

return mailId;

}

public void setMailId(String mailId) {

this.mailId = mailId;

}

public String getMobileNo() {

return mobileNo;

}

public void setMobileNo(String mobileNo) {

this.mobileNo = mobileNo;

}

public String getAddress() {

return address;

}

public void setAddress(String address) {

this.address = address;

}

JSp Page on successful insertion – Home.jsp

<%@ page language="java" contentType="text/html; utf-8"
	pageEncoding="utf-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="ISO-8859-1">
<title>Student Home</title>
</head>
<body>
	<h2>${success}</h2>
</body>
</html>

<%@ page language="java" contentType="text/html; utf-8"

pageEncoding="utf-8"%>

<!DOCTYPE html>

<html>

<head>

<title>Student Home</title>

</head>

<body>

<h2>${success}</h2>

</body>

</html>

Result

insert.jsp

This page contains all fields of students.

This will pass to InsertStudentServlet.java. that passes the student model to StudentDAO that saves data to the database.

JSP page to store student record in MySQL database

home.jsp

On successful insertion, it will be redirected to the home page and shows the following message.

Here we discussed How to insert data in MySql Using JSP Servlet & JDBC
