Here we will get data from the database to servlet JDBC and show data on the JSP page using Jakarta Server Pages and the JSTL library.
Technology used
- apache-tomcat-10.1.1
- JavaSE-17
- eclipse IDE for Enterprise Java and Web Developers
Steps to develop programs
- Create MySql Table and insert data
- Create A Dynamic Web Project
- Create package structure
- Create java files
- create jsp files
1 Create MySQL Table

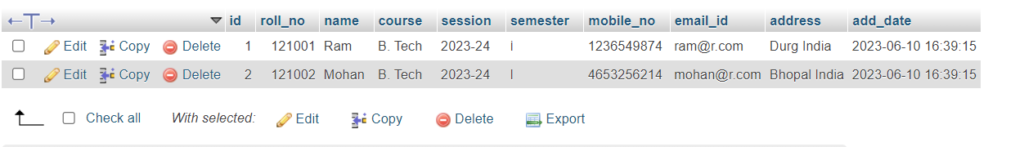

Create a MySql table and insert a few data that will be retrieved from the database using our servlet program.
The script for creating the table is as below. Insert data as per need.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 | create table student( id bigint(20) unsigned NOT NULL AUTO_INCREMENT, roll_no bigint(20), name varchar(100), course varchar(100), session varchar(80), semester varchar(80), mobile_no varchar(30), email_id varchar(100), address varchar(200), add_date timestamp DEFAULT CURRENT_TIMESTAMP, primary key(id), unique key(roll_no), unique key(mobile_no), unique key(email_id) ) ENGINE = InnoDB DEFAULT CHARSET = utf8; |
Creating Java Dynamic Web Project
Open Eclipse IDE and follow the below steps
- Click on File->New-> Dynamic Web Project.
- Give project Name
- Select Target runtime (here apache-tomcat-10.1.1)
- then next again next then finish.
This will create a new project.
Creating packages and files
- Create packages
com.ebhor.controller
,com.ebhor.dao
andcom.ebhor.model
insidesrc/main/java
- Create
GetStudent.java
servlet insidecom.ebhor.controller
- Create
ConnectionFactory
andStudentDAO
.java insidecom.ebhor.dao
- Create
Student.java
insidecom.ebhor.model
- Create a
index.jsp
andstudents.jsp
inside webapp folder.

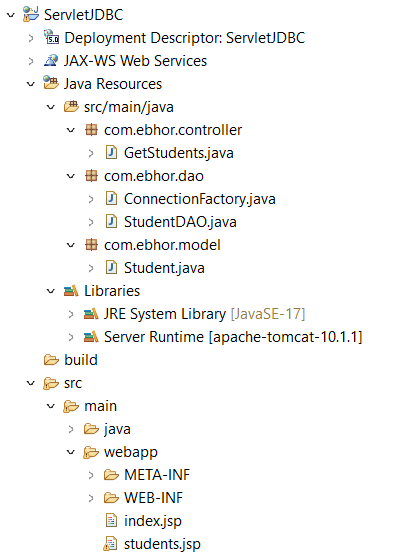

Project Explorer
External Jar
The following External jars are included in the apache tomcat lib folder
mysql-connector-java-8.0.30
jakarta.servlet.jsp.jstl-3.0.0
jakarta.servlet.jsp.jstl-api-3.0.0
Servlet class to get data from DAO (GetStudents.java)
- Create a Dao object and access
fetchAll()
. This will return a List of students. - Set the student list as an attribute in the request scope.
- Send the request and response to
students.jsp
usingRequestDispatcher
.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 | package com.ebhor.controller; import java.io.IOException; import java.util.List; import com.ebhor.dao.StudentDAO; import com.ebhor.model.Student; import jakarta.servlet.RequestDispatcher; import jakarta.servlet.ServletException; import jakarta.servlet.annotation.WebServlet; import jakarta.servlet.http.HttpServlet; import jakarta.servlet.http.HttpServletRequest; import jakarta.servlet.http.HttpServletResponse; @WebServlet("/show-students") public class GetStudents extends HttpServlet { private static final long serialVersionUID = 1L; StudentDAO dao = new StudentDAO(); protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { List<Student> studentList = dao.fetchAll(); request.setAttribute("students", studentList); RequestDispatcher requestDispatcher = request.getRequestDispatcher("/students.jsp"); requestDispatcher.forward(request, response); } } |
Student Model class Student.java
Create a student model class to hold values of student objects and provide a getter, setter, constructor, and toString method.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 | package com.ebhor.model; import java.io.Serializable; public class Student implements Serializable { private static final long serialVersionUID = 7935940591376293207L; private long id; private long rollNo; private String name; private String course; private String session; private String semester; private String mailId; private String mobileNo; private String address; public Student() { } public Student(long id, long rollNo, String name, String course, String session, String semester, String mailId, String mobileNo, String address) { super(); this.id = id; this.rollNo = rollNo; this.name = name; this.course = course; this.session = session; this.semester = semester; this.mailId = mailId; this.mobileNo = mobileNo; this.address = address; } @Override public String toString() { return "Student [id=" + id + ", rollNo=" + rollNo + ", name=" + name + ", course=" + course + ", session=" + session + ", semester=" + semester + ", mailId=" + mailId + ", mobileNo=" + mobileNo + ", address=" + address + "]"; } public long getId() { return id; } public void setId(long id) { this.id = id; } public long getRollNo() { return rollNo; } public void setRollNo(long rollNo) { this.rollNo = rollNo; } public String getName() { return name; } public void setName(String name) { this.name = name; } public String getCourse() { return course; } public void setCourse(String course) { this.course = course; } public String getSession() { return session; } public void setSession(String session) { this.session = session; } public String getSemester() { return semester; } public void setSemester(String semester) { this.semester = semester; } public String getMailId() { return mailId; } public void setMailId(String mailId) { this.mailId = mailId; } public String getMobileNo() { return mobileNo; } public void setMobileNo(String mobileNo) { this.mobileNo = mobileNo; } public String getAddress() { return address; } public void setAddress(String address) { this.address = address; } } |
Connection with MySql and Getting Data from MySQL
ConnectionFactory.java
Instead of specifying a database connection to each JDBC call a class is created to return the Connection object.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 | package com.ebhor.dao; import java.sql.Connection; import java.sql.DriverManager; import java.sql.SQLException; public class ConnectionFactory { public static Connection getConnection() { Connection c = null; try { Class.forName("com.mysql.cj.jdbc.Driver"); c = DriverManager.getConnection("jdbc:mysql://localhost:3306/ebhor","root", ""); } catch (ClassNotFoundException e) { System.out.println("ClassNotFoundException " + e); } catch (SQLException e) { System.out.println("SQLException " + e); } return c; } } |
StudentDAO.java
To access student’s data from MySQL table JDBC Prepared statement is used.
Steps to read data from MySQL
- Get the connection object
- Prepare the PreparedStatement
- Execute the query and get ResultSet
- Iterate ResultSet object
- Prepare student objects and assign to student ArrayList.
- Close the connection
- Return students
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 | package com.ebhor.dao; import java.sql.Connection; import java.sql.PreparedStatement; import java.sql.ResultSet; import java.sql.SQLException; import java.util.ArrayList; import java.util.List; import com.ebhor.model.Student; public class StudentDAO { Connection con = null; PreparedStatement ps = null; ResultSet rs = null; public List<Student> fetchAll() { List<Student> studentList = new ArrayList<Student>(); con = ConnectionFactory.getConnection(); try { String query = "select * from student order by id"; ps = con.prepareStatement(query); rs = ps.executeQuery(); while (rs.next()) { Student student = new Student(); student.setId(rs.getLong("id")); student.setRollNo(rs.getLong("roll_no")); student.setName(rs.getString("name")); student.setCourse(rs.getString("course")); student.setSession(rs.getString("session")); student.setSemester(rs.getString("semester")); student.setMobileNo(rs.getString("mobile_no")); student.setMailId(rs.getString("email_id")); student.setAddress(rs.getString("address")); studentList.add(student); } } catch (Exception e) { e.printStackTrace(); } finally { try { con.close(); } catch (SQLException ex) { ex.printStackTrace(); } } return studentList; } } |

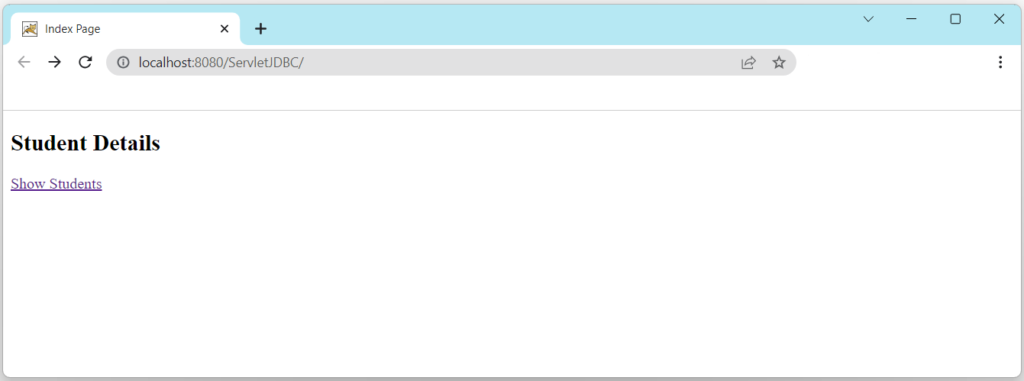

Index Page (index.jsp)
This page contains a link called Servlet.
1 2 3 4 5 6 7 8 9 10 11 12 13 | <%@ page language="java" contentType="text/html; charset=utf-8" pageEncoding="utf-8"%> <!DOCTYPE html> <html> <head> <meta charset="utf-8"> <title>Index Page</title> </head> <body> <h2>Student Details</h2> <a href="show-students">Show Students</a> </body> </html> |
List of students (students.jsp)
After fetching data from the database servlet send a request response to this page.
This page iterates request scope object students using c:forEach
. JSTL core tag library is used here.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 | <%@ page language="java" contentType="text/html; charset=ISO-8859-1" pageEncoding="utf-8"%> <%@taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%> <!DOCTYPE html> <html> <head> <title>Student Details</title> <meta charset="utf-8"> <meta name="viewport" content="width=device-width, initial-scale=1"> <link rel="stylesheet"> <script </head> <body> <div class="container mt-3"> <div class="row"> <div class="col-2"></div> <div class="col-8"> <h2>List of Students</h2> <table class="table table-bordered"> <thead> <tr> <th>#</th> <th>Roll No</th> <th>Name</th> <th>Course</th> <th>Session</th> <th>Semester</th> <th>Mobile No</th> <th>Email Id</th> <th>Address</th> </tr> </thead> <tbody> <c:forEach items="${students}" var="student" varStatus="loop"> <tr> <td>${loop.index+1}</td> <td>${student.rollNo}</td> <td>${student.name}</td> <td>${student.course}</td> <td>${student.session}</td> <td>${student.semester}</td> <td>${student.mobileNo}</td> <td>${student.mailId}</td> <td>${student.address}</td> </tr> </c:forEach> </tbody> </table> </div> <div class="col-2"></div> </div> </div> </body> </html> |

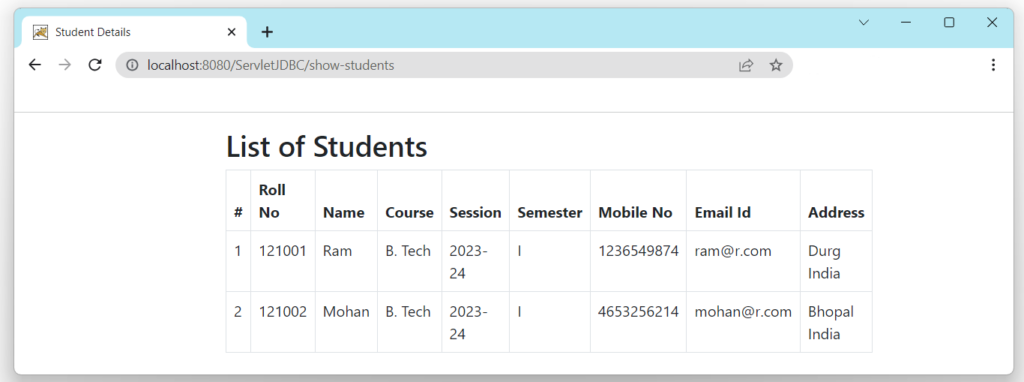

Result
Along with jakarta.servlet.jsp.jstl-3.0.0
include jakarta.servlet.jsp.jstl-api-3.0.0
Answer: Include jakarta.servlet.jsp.jstl-3.0.0
and supporting jar jakarta.servlet.jsp.jstl-api-3.0.0
to work it correctly.
