Creating Login page in awt applet is easy.
Here we are not using any layout.
Login page contains two label, one textfield , one password field and two buttons.
Steps by step process to develop this program is as below
- Declare Label, JTextField, JPasswordField and Button
- Inside init() create object for JLabel, JTextField and JPasswordField and Button
- setBounds() to show elements in specific position.
- set Container layout to null
setLayout(null);
- add all elements to container using
add()
- set size of container
setSize(400, 300);
addActionListener()
to login and reset button- override
actionPerformed()

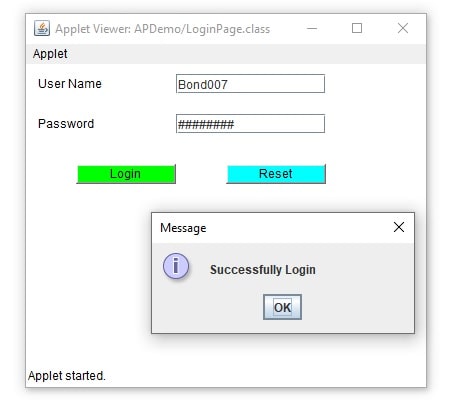

for login and reset - on click on login button if username is Bond007 and password in James007 then show message Dialog Successfully Login

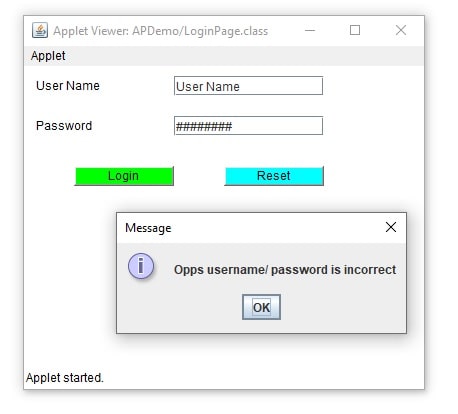

- if username and password is incorrect then show message Dialog Opps username/ password is incorrect
- on click on reset button reset the values of username and password field
Login page in awt applet Example
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 | package APDemo; import java.applet.Applet; import java.awt.Button; import java.awt.Color; import java.awt.Label; import java.awt.event.ActionEvent; import java.awt.event.ActionListener; import javax.swing.JOptionPane; import javax.swing.JPasswordField; import javax.swing.JTextField; public class LoginPage extends Applet { Label userNameLabel, passwordLabel; JTextField userName; JPasswordField password; public void init() { userNameLabel = new Label("User Name"); userName = new JTextField(20); userName.setText("User Name"); passwordLabel = new Label("Password"); password = new JPasswordField(20); password.setText("Password"); password.setEchoChar('#'); login = new Button("Login"); reset = new Button("Reset"); userNameLabel.setBounds(10, 10, 100, 20); userName.setBounds(150, 10, 150, 20); passwordLabel.setBounds(10, 50, 100, 20); password.setBounds(150, 50, 150, 20); login.setBounds(50, 100, 100, 20); login.setBackground(Color.GREEN); reset.setBounds(200, 100, 100, 20); reset.setBackground(Color.CYAN); //set applet layout to null setLayout(null); //add elements to applet add(userNameLabel); add(userName); add(passwordLabel); add(password); add(login); add(reset); //set size of applet setSize(400, 300); //login button click login.addActionListener(new ActionListener() { @Override public void actionPerformed(ActionEvent ae) { String uname = userName.getText().toString(); String passwd = password.getText().toString(); System.out.println("User Name :" + uname); System.out.println("Password :" + passwd); if (uname.equals("Bond007") && passwd.equals("James007")) { JOptionPane.showMessageDialog(null, "Successfully Login"); } else { JOptionPane.showMessageDialog(null, "Opps username/ password is incorrect"); } } }); //reset button click reset.addActionListener(new ActionListener() { @Override public void actionPerformed(ActionEvent ae) { userName.setText(""); password.setText(""); } }); } } |
Elements are placed in specific position using setBound().
Buttons click events are bind using ActionListener and handled by actionPerformed.
We handled events like below.
1 2 3 4 5 6 | login.addActionListener(new ActionListener() { @Override public void actionPerformed(ActionEvent ae) { } } |
You can handle actionPerformed()
separately for that you have to implement ActionListener
in your class.
You can run and check Program output

Hope you Got this.
